Principles in conveyor system design

Nguyên tắc trong thiết kế hệ thống băng tải - Principles in conveyor system design

Conveyor systems are a very common piece of industrial equipment used in most modern factories. Business owners need to understand the principles of conveyor system design (Principles in conveyor system design) below to choose a quality conveyor. Find out with Sukavina right in the article below.

1/ Overview of the conveyor system

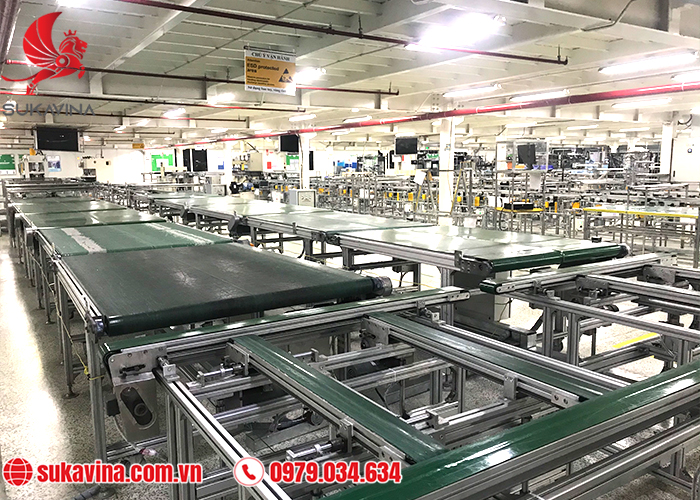

Overview of the conveyor system - Conveyor installation location
Overview of the conveyor system – Conveyor installation location

Conveyor belts are an efficient device for transporting and supporting the production, processing, assembly and packaging of goods. Basically, it moves goods and materials quickly, continuously and efficiently from one point to another. Depending on the type of conveyor, additional rollers, lifting feet or workbenches can be installed to allow workers to use it for food processing and ingredient packaging.

2/ Conveyor system structure

Conveyor system structure - Principles in conveyor system design
Conveyor system structure – Principles in conveyor system design
Conveyor frame: usually made of aluminum profile, powder coated steel or stainless steel.
Conveyor belt: Usually 2mm and 3mm thick PVC belt or 1.5mm thick PU belt.
Drive motor: It is a geared motor with a capacity of 0.2KW, 0.4KW, 0.75KW, 1.5KW, 2.2KW.
Conveyor controller: Usually includes inverter, sensor, timer, PLC..
The transmission mechanism includes rollers, traction rollers, chains…
Control cabinet: Indicator light, switch, emergency stop button, inverter,…
Further details: In addition, depending on specific requirements, the conveyor system is equipped with additional rollers, adjustable boosters, indicator lights and sensors to facilitate the production process. .
The inverter adjusts the conveyor speed from 10-60 (m/min). It adjusts depending on the product and conveyor capacity.

3/ The principle of operation of the conveyor is as follows

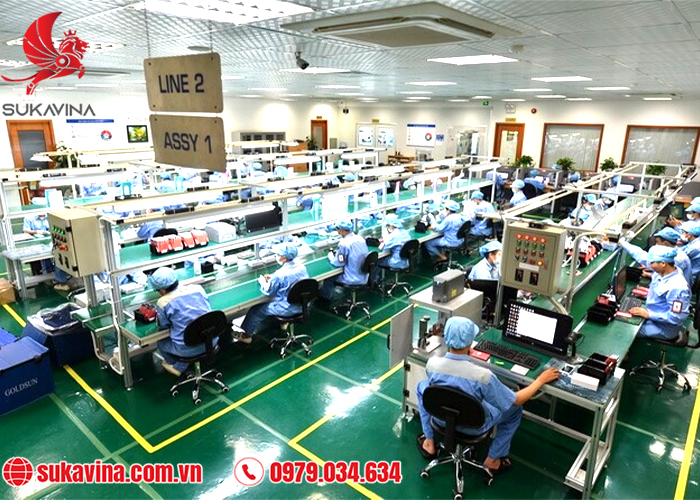

The principle of operation of the conveyor belt is as follows
The principle of operation of the conveyor belt is as follows
The principle of operation of the conveyor belt (principles in conveyor system design) works by rotating the pulley when the motor is turned on, causing the conveyor to move. The moving speed of the conveyor belt is adjusted according to the transportation needs. When the product or material is left on the top of the conveyor, it is transported by the movement of the conveyor belt. Conveyor belts are often installed with additional rollers during transportation to prevent stretching.
Depending on the type of conveyor, it will be designed with a variety of materials and sizes. Conveyors made of PVC are a great way to transport a wide variety of products. PVC conveyor belts are durable, resistant to peeling and can work in a variety of environmental conditions. It is essential to have strong, durable, wear-resistant and long-lasting conveyor belts in a variety of production areas.
To avoid belt expansion, the belt expansion coefficient should be low because various product lines can be transported at high speeds over long distances by conveyors. Therefore, it is necessary to follow the principles in conveyor system design to avoid problems during operation.

If customers and readers want to know more about PVC conveyor belt evaluation standards, please read this article: PVC Conveyor Belt Rating Standards

4/ Principles in conveyor system design

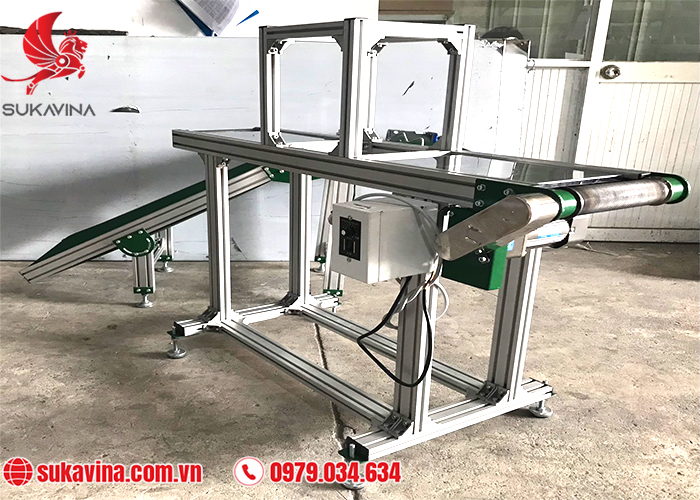

Principles in conveyor system design
Principles in conveyor system design

Conveyors used in industrial facilities can vary widely in size, shape, load capacity, etc. Therefore, it is important that you understand the following golden rules before choosing a conveyor for your business. your factory.

  • Identify the actual use

Conveyors are made in a variety of styles, sizes and thicknesses specified for different needs. Roller conveyors, PVC conveyors and PU conveyors are the most common types.

  • Determine the right product to ship
Different types of conveyors are suitable for different products, depending on their characteristics. PVC conveyor belts are the best choice when it comes to electronics and components.
In case the product has a low coefficient of friction and is easy to slip, it is necessary to consider rough PVC conveyor belts or ribbed PVC conveyor belts.
  • Locate the installation space

Conveyor design requires measuring the exact location of conveyor installations to make optimal use of plant space. The principle in the design of the conveyor system for space requires that there be enough space for workers to easily manipulate.

  • Determine the working environment condition of the conveyor
Adhering to the principles of conveyor system design will help the conveyor’s efficiency to be optimal, without being difficult in the operation of workers.
Depending on the working environment, businesses should choose different types of conveyors. Conveyor belts made of PVC are suitable for working environments in factories, where there is a clean working environment, no dirt or chemicals, high temperature and humidity…
Plastic roller conveyors are suitable for transporting light and medium weight containers.
Steel roller conveyors are often used to transport goods with large loads, dusty environments such as in mineral mines, construction sites…
Hope the above article helps you and your readers to understand the principles in conveyor system design.

5/ Prestigious conveyor and conveyor system design unit

If you are looking for a reputable and quality conveyor manufacturing and processing unit, Sukavina is the first choice for you!
We supply products for the industry such as PVC conveyors, roller conveyors, workbenches, storage shelves, trolleys… In addition, we provide advanced consulting solutions. labor productivity for businesses to maximize their profits.
With a team of experienced technicians, mastering the principles of conveyor system design,
Sukavina is confident to meet the needs and expectations of customers.
